FREE MVHR SYSTEM PROPOSAL - SEND DRAWINGS TO SALES@THEAIRSHOP.CO.UK

t: 033 0223 6776

MVHR System Illustration
Estimate Costs for MVHR Unit & Ducting

Floor Area 0-100m2
£2,000-£2,500

What's included?

The MVHR Cost Illustration brings together the required parts and ancillaries for the property size you have selected.

1. Recommended MVHR Unit

Sized to achieve airflow rates at acceptable noise levels and to meet Part F: Building Regulations.

2. Ducting & Ancillaries including standard items such as;

  • 90mm crushproof Semi-Rigid ducting
  • Semi-Rigid Manifold and parts
  • Insulating Duct Wrap
  • Metal Air Valves (extract/supply)
  • External Louvre Grille
  • Fixing Ancillaries including tape, sealant and strapbanding

This is just an illustration.
Each property layout is different and requirements for noise reduction, fire protection, exhaust terminations (roof), pre heater etc will impact the price. Estimate cost for supply of materials only.

What's included?

The MVHR Unit

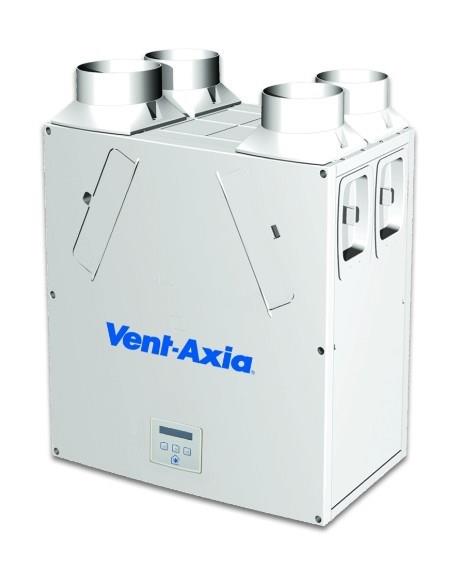

Vent-Axia Lo-Carbon Sentinel Kinetic BH Heat Recovery Ventilation (MVHR) Unit

  • Up to 90% heat recovery - helping reduce your heating bills!
  • Extra low energy consumption - costs from £35.00 per annum to run for the entire year
  • Mechanical summer by-pass to stop heat recovery in warmer months
  • Internal humidity sensor for boosting when required
  • Digital control for set up and diagnostics
  • 5 Year warranty
  • Vertical or horizontal connections (horizontal for space saving)
  • Left or right-hand configuration
  • Weight: 15kg
  • Duct diameter: 125mm - ideal for use with rigid or semi-rigid ducting

Find out more about the Vent Axia Sentinel Kinetic BH MVHR

All MVHR Units for 0-100m²
The MVHR Unit

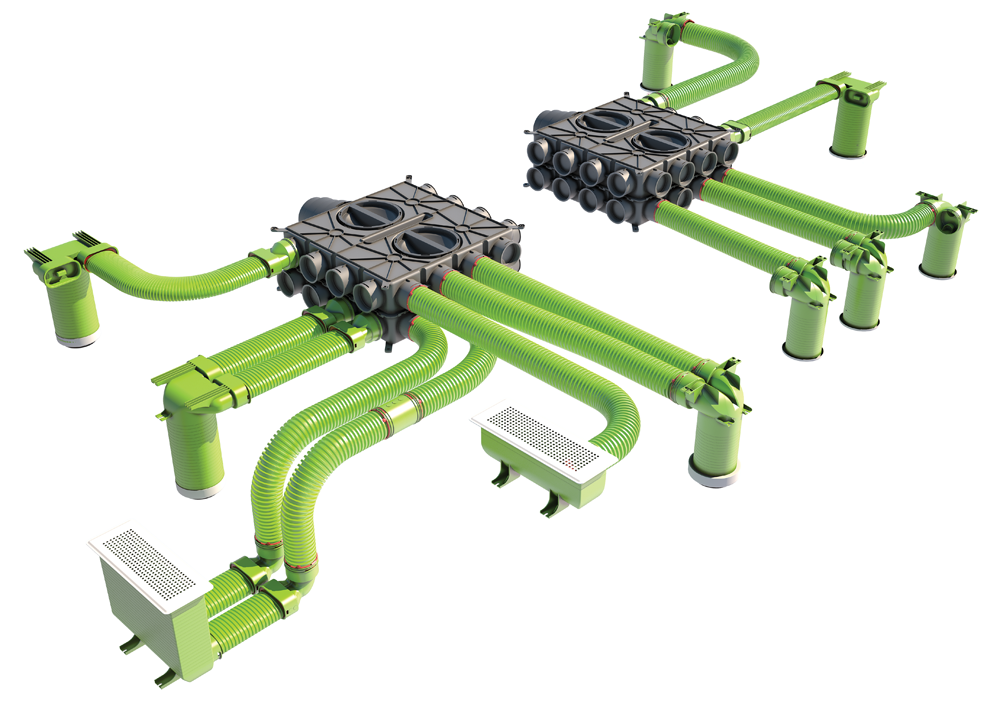

MVHR Ducting

Your MVHR system performance isn't just about the unit - the choice ducting plays a fundamental part in the overall performance and can impact installed noise levels if there is too much resistance in the system or has leakage due to poor connections and installation. We always recommend Semi-Rigid Ducting for MVHR systems for it's ease of installation and airtightness performance;

  • Flexible Application
    Can be cut into long runs to each room resulting in less connections and reduced air leakage across the system
  • Reduced Crosstalk Noise
    Dedicated duct runs to each room eliminate noise transfer from room to room
  • Cleanliness and Indoor Air Quality
    Anti-static and anti-bacterial properties for easy cleaning
  • Easy to fit
    Smaller duct diameters are easy to accomodate in different building designs and layouts
  • Simple Installation
    Click the components together and thread/wind through building spces and voids with ease
  • Read more about the UBBINK AIR EXCELLENT Semi Rigid Ducting Range

MVHR Ducting

MVHR System - What Next?


MVHR Design Services

Send your plans for a Free MVHR Proposal

If you are lookng for a MVHR system for your new home, or embarking on a MVHR retrofit, we're here to help.  Each system is bespoke and designed to meet the needs of the home and out specialist MVHR team can help provide guidance for start to finish. We offer a range of MVHR Design Services which include full airflow calculations and CAD layouts to a full hand-holding onsite support process.

MVHR Design Services
MVHR Design Services


Why work with The Air Shop?


Knowledge

We live and breathe home ventilation and know Building Regulations inside out. The team have extensive experience to make sure we solve issues, and provide a efficient system for your home all year round


Independent

We've hand picked market leading brands that we trust that fit wth all budgets.  Our relatonships ensure the products you buy from us are high quality and backed up with good warranties for your peace of mind.


Experience

We live and breathe home ventilation and know Building Regulations inside out. The team have extensive experience to make sure you get what you need from your MVHR System.


Support

The team understand that ventilation is an investment in a home and provide ongoing advice and recommendations for the best performance in your home.  From unit specificaiton, design, set up and commissionng, we can be with you every step of the way.

5 Things To Consider When Designing Your MVHR System

From your MVHR unit to the ducting, it all makes a big difference! Here are the top 5 things you should consider when designing your system

What is MVHR Heat Recovery and what are the benefits?

MVHR is a whole house ventilation system perfect for todays modern homes where comfort, energy efficiency and health and well-being are on the agenda.

Why Semi-Rigid Ducting Is The Best Choice For MVHR

Semi-rigid ducting is a winner when it comes to MVHR ventilation systems, and we're going to explain why!
