FREE MVHR SYSTEM PROPOSAL - SEND DRAWINGS TO SALES@THEAIRSHOP.CO.UK











Up to 250m2
5 year warranty

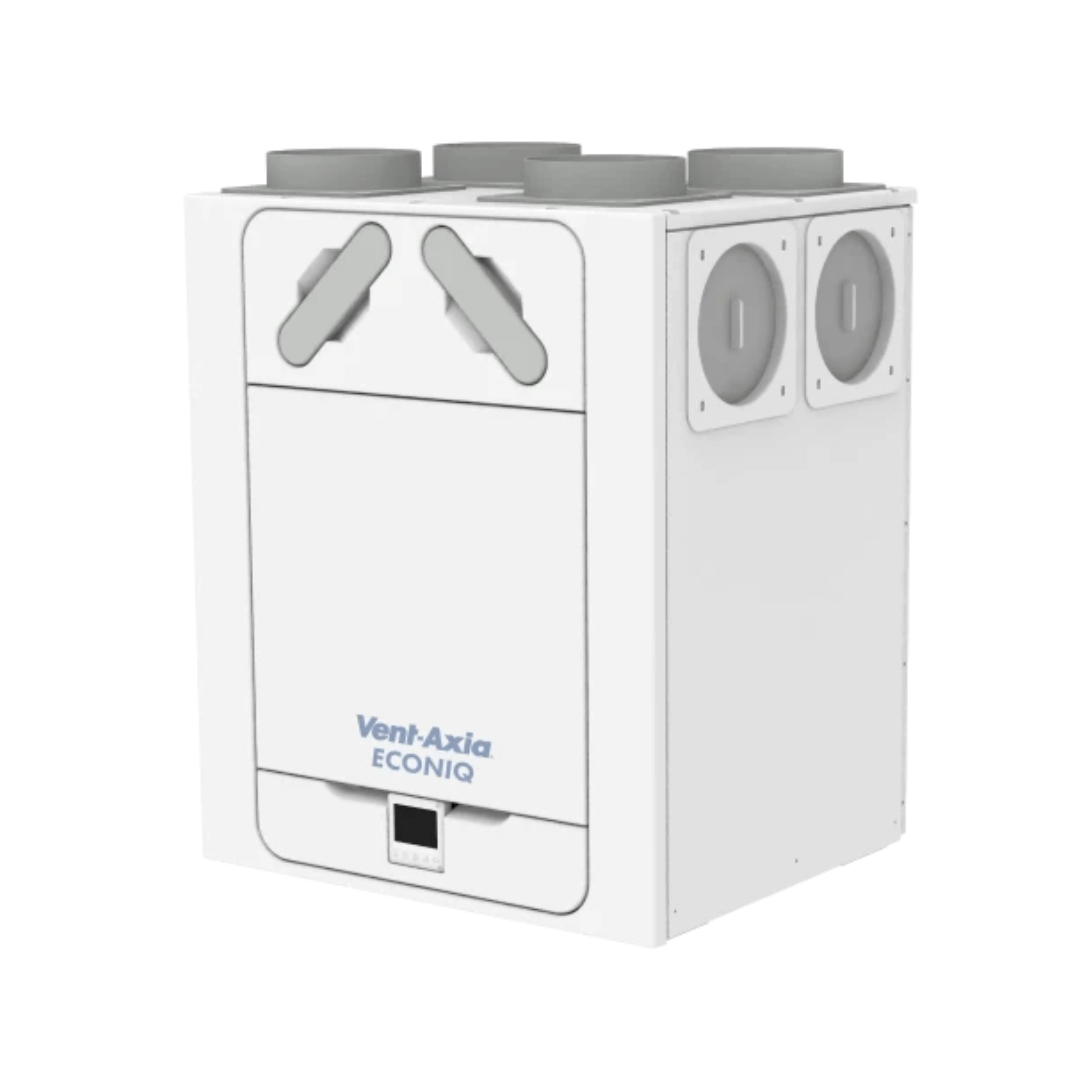

Vent Axia Sentinel Econiq M MVHR Unit 499632

£2240.00

Bulky Item Delivery (30kg +) £85.00

The Lo-Carbon Sentinel Econiq is Vent-Axia’s latest MVHR unit, the highly sculpted interior surfaces, designed using the latest CFD techniques, ensure airflows are maximised through the unit, minimising noise and energy use. This feature alone provides an experience, that will delight homeowners, providing the most discrete and highly efficient ventilation available.

The Lo-Carbon Sentinel Econiq is one of the quietest systems on the market, with a noise level as low as 15.5 dB(A). The range is designed with an integral acoustic enclosure, made of steel, foam and expanded polypropylene (EPP), minimising breakout noise. The highly efficient motors are mounted on anti-vibration mounts to ensure minimal vibration transmission.

The inclusion of horizontal spigots allows for flexible installation in tight spaces. It is possible to use both vertical and horizontal connections.

Max Floor Area 250m2

Product Info

Key Product Information;

Vent Axia Sentinel Econiq Data Sheet
Vent Axia Sentinel Econiq Product Brochure
Vent-Axia Sentinel Econiq Homeowner Guide
Vent Axia Sentinel Econiq Installation Instructions

Max Floor area 250m2

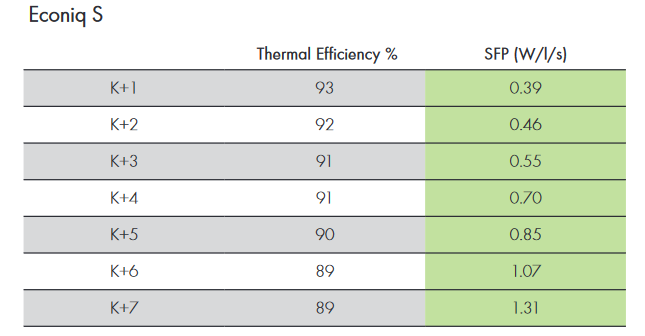

• Best in class SFP's and thermal efficiencies up to 93%
• Approved Document F aligned commissioning wizard
• New Sentinel-X wireless control platform
• Intelligent smart app control as standard
• Horizontal duct option for space-saving installations (M & L only)
• ISO ePM10 (M5) and ePM2.5 (F7) filtration options
• Sound levels as low as 15.5 dB(A) breakout
• Independently tested and verified by SRL
• Left/right handing via controls
• Developed and manufactured in the UK
• Acoustic enclosure and top box options (S only)

Delivery & Returns

  • The Air Shop uses FedEx for shipping and a tracking number is provided (if alternative courier is used, this will be advised through tracking confirmation information)
  • 48 hour shipping available
  • Your delivery date will be advised within 24 hours of completion of order based on stock availability
  • Delivery is available Monday – Friday (if alternative is required, please call to discuss)
  • The Air Shop cannot be held responsible for delivery delays by the courier
  • Orders over 30kg are excluded from free shipping and a charge will apply which will be shown on checkout


Multiple Unit Orders & Larger Pallet
If you are wanting to purchase multiple units for a larger project, or require a pallet delivery we will provide a separate and personalised quote for this. Please contact our office 033 0223 6776 or email sales@theairshop.com


Collection
Orders are available for collection, please contact us on 033 0223 6776 or email sales@theairshop.com to confirm your item Is in stock and agree a date/time.

Opening Hours
Monday – Friday / 8:00am – 5:30pm
13 Market Road, Richmond, London, TW9 4LZ

Back orders If your item is out of stock, we will back order if for you or give you the option to cancel

Specifications

Dimensions: 881 x 728 x 608 mm
Weight: 32kg
Duct Diameter: 200mm

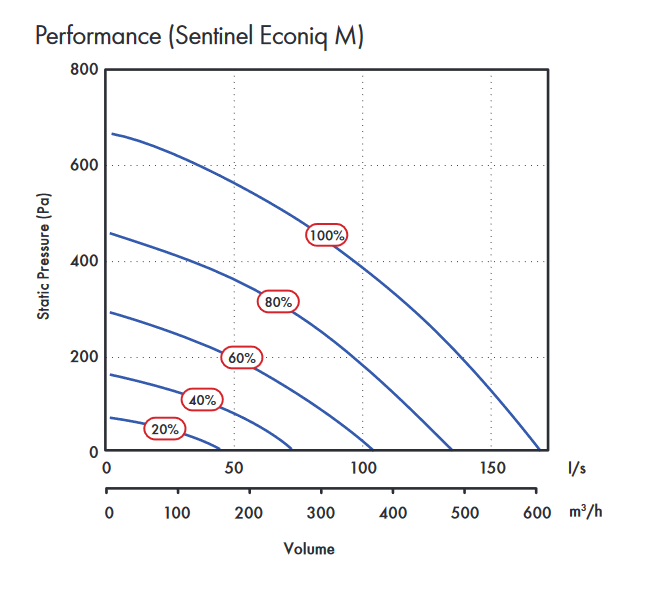

Airflow rate Max : 170l/s
Airflow rate at 100Pa: 77l/s
Max Floor Area: 250m2
Heat Recovery Efficiency: Up to 93%
Sound Levels db(A) @ 3m: Sound levels as low as 15.5 dB(A) breakout
Mounting: Wall/Floor
Warranty: 5 Years
Manufacturer SKU: 499632
Filters: Summer Sneezer (M5)/Propper Stopper (F7)

Learn about the Vent-Axia Sentinel Econiq Unit features

Learn about Zehnder RapidLock Connection features
