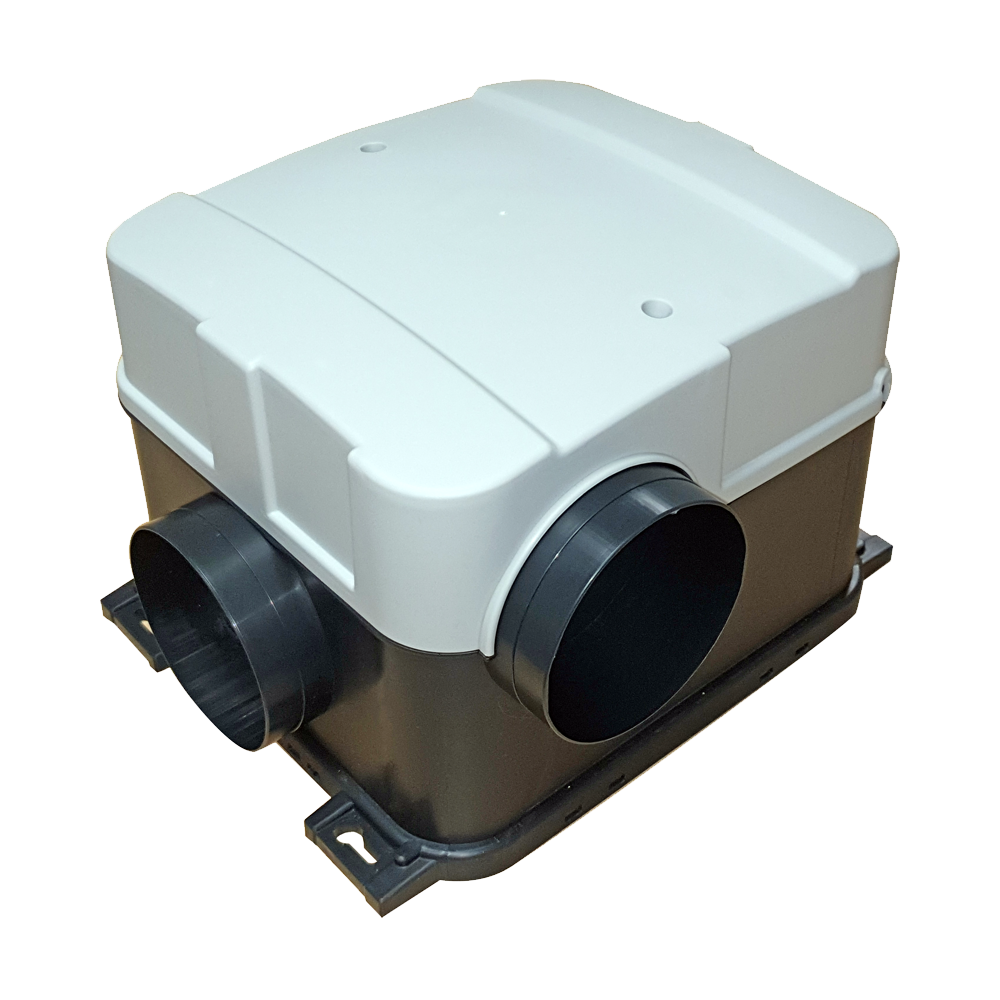

Titon CME 3.1 Q Plus Mechanical Extract Ventilation (MEV) Unit

£350.00

MEV Delivery - 2-3 working days £30.00

The CME3.1 Q Plus is ideal for continuous extract of stale, damp and polluted air to the outside environment from multiple extract points.  The combination of aesthetic smooth lines and low profile makes it the ideal solution for hidden ceiling installation in flats and apartments. The unit has a very large airflow duty range over 120 l/s (430m3/hr) at reasonable static pressure making it ideal for up to 7 room extract.  Unit can be mounted in loft or cupboard and ducted (rigid or semi rigid ducting) to extract points. Various models available including Volt Free (standard boosting), Humidity (automatic boosting via humidity sensing) and Switch Live (boost via light switch)

New SKU Codes:
TP342A- Volt free
TP342HA- Volt free and humidity sensor
TP342HALS - Humidity sensor and live switching

Old SKU Codes to replace:
TP332A – CME 3 Q Plus Volt Free
TP332HA – CME 3 Q Plus, humidity sensor
TP334HA - CME 3 Q Plus, humidity sensor and live switching

Product Info

Important Document and Manuals
Titon CME 3.1 Q Plus User Guide
Titon CME 3.1 Q Catalogue pages

Key Features & Benefits

  • High energy efficiency levels with low energy motor
  • Very low power consumption/specific fan power
  • Airflow up to 120 l/s
  • Compact – unit is small and low in profile, can be fitted in airing cupboards, cupboards or loft spaces
  • Easy installation due to innovative sub-assembly and unique packaging design
  • Optional adjustable humidity sensor (between 55% RH & 85% RH) increases unit’s speed proportionally (humidity model)
  • Low unit noise
  • Fully adjustable boost overrun timer 0-30 minutes
  • Can accept either Ø125 and/or Ø100 ducting
  • Available in volt free and switch live inputs
  • Quick and easy commissioning
  • Demand control ventilation ready
  • Can be mounted on any plane

Volt free switch inputs
TP332A – CME 3 Q Plus (Full assembly).
TP332HA – CME 3 Q Plus, humidity sensor (Full assembly).
Switch live inputs
TP334HA – CME 3 Q Plus, humidity sensor (Full assembly).

General Info

Centralised mechanical extract systems (c-MEV) also known as a Multipoint and Central Extract System draw moisture-laden air from multiple wet rooms of a property, essentially the concept is to provide simultaneous, low level extraction from kitchens, bathrooms, shower rooms, utility rooms and toilets to a central extract fan typically located in a loft space or hallway cupboard via a system of ductwork and grilles to control humidity levels. The extracted air is then normally discharged to outside via a single duct and grille/cowl.

Delivery & Returns

  • The Air Shop use DPD to send items up to 30kg
  • All DPD deliveries can be tracked and traced.
  • Delivery date will be advised within 24 hours on completion of order and is based on stock availability
  • Delivery is available Monday – Friday
  • DPD will advise you in advance of the one hour delivery timeslot
  • You can track your parcel all the way to you on a live map with a countdown to the final 15 minute timeslot
  • If delivery is not convenient you can opt for the unit to be left in a safe place or delivered to neighbour.


For orders over 30kg

  • The Air Shop use UPS to deliver larger items over 30kg
  • All UPS deliveries can be tracked and traced
  • Delivery date will be advised within 24 hours on complete of order and is based on stock availability
  • Delivery is available Monday – Friday
  • UPS will advise you in advance of the one-hour delivery timeslot


Larger Pallet and Multiple Unit Orders

If you are placing an order for multiple units that require a pallet delivery, we will provide a separate quotation for this.

Collection
You are welcome to collect your order from us.
Please call us on 033 0223 6776 or email sales@theairshop.com to confirm that the items are in stock and to agree a collection date/time.

We will then aim to have your order ready for you.

Operating Hours:

Monday – Friday: 8am - 5.30pm

Our address is: 13 Market Road, Richmond, London, TW9 4LZ

Back Orders

If your item is not in stock, we will back order it for you. You will always be emailed with the option to cancel your order if you would rather not wait.

Specifications

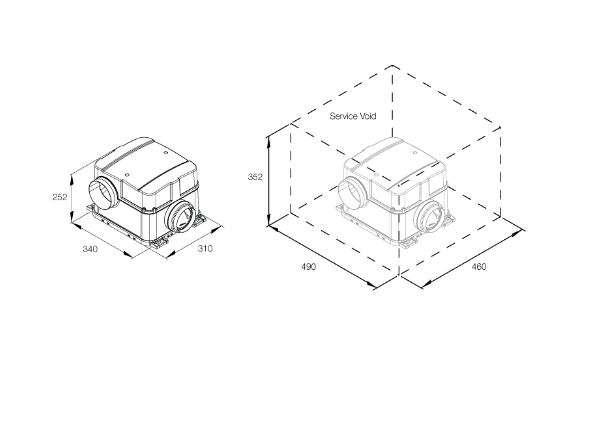

Dimensions (excluding ports): 310mm wide x 340mm long x 252mm high (excluding spigots)
Maximum Airflow: 120 l/s
Rooms: Up to 7 extract points (depending on extract requirements and duct runs)
Weight: 15 kg
Finish: Light grey / dark grey
Materials Housing: Polypropylene
Warranty: 3 years
Electrical: 230V ~ 50/60Hz, 3A fuse
Ducting: 100 or 125mm ducting connections
Speeds: Trickle and Boost
Old SKU Codes: TP332A, TP332HA, TP334HA
New SKU Codes: TP342A, TP342HA, TP342HALS
